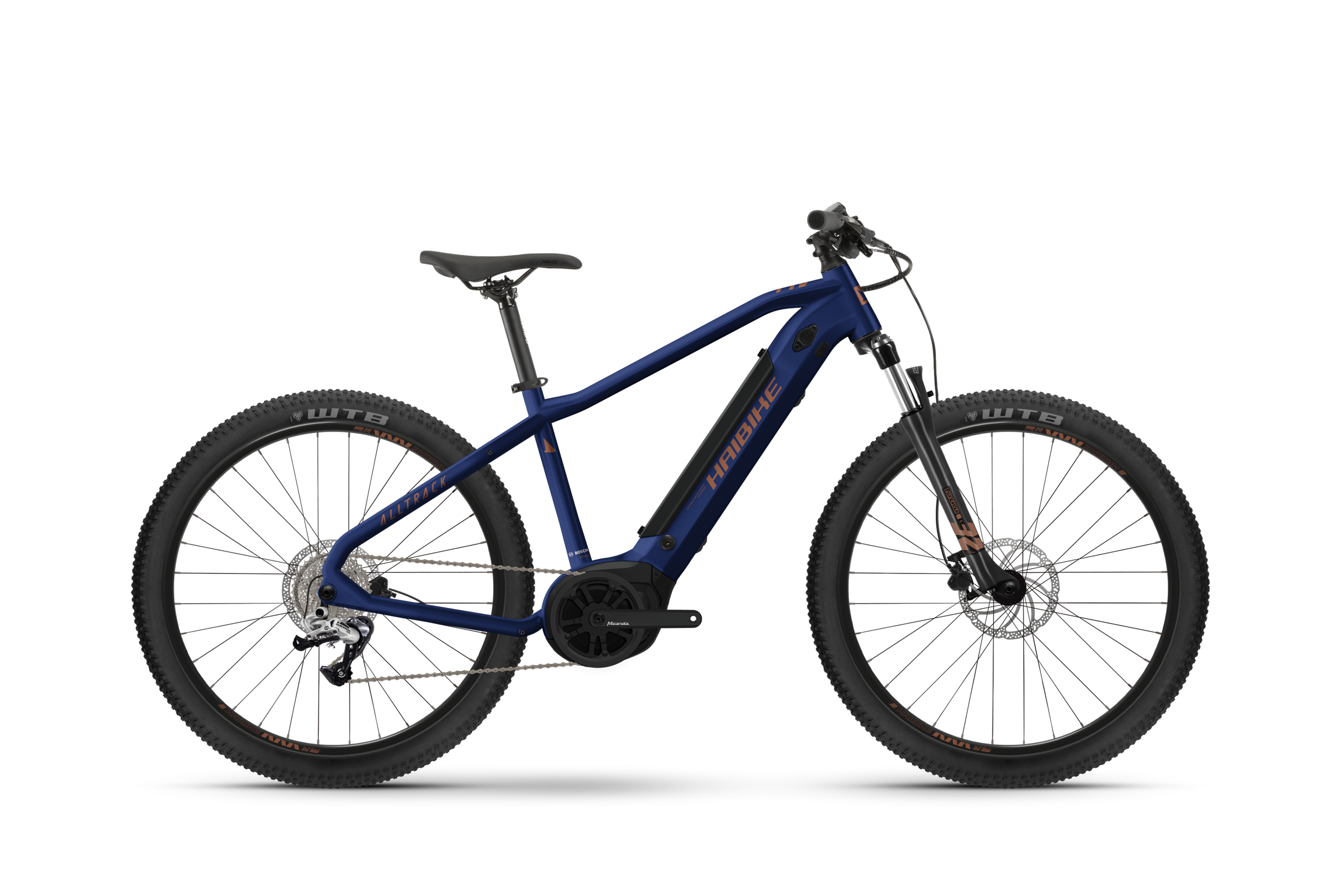

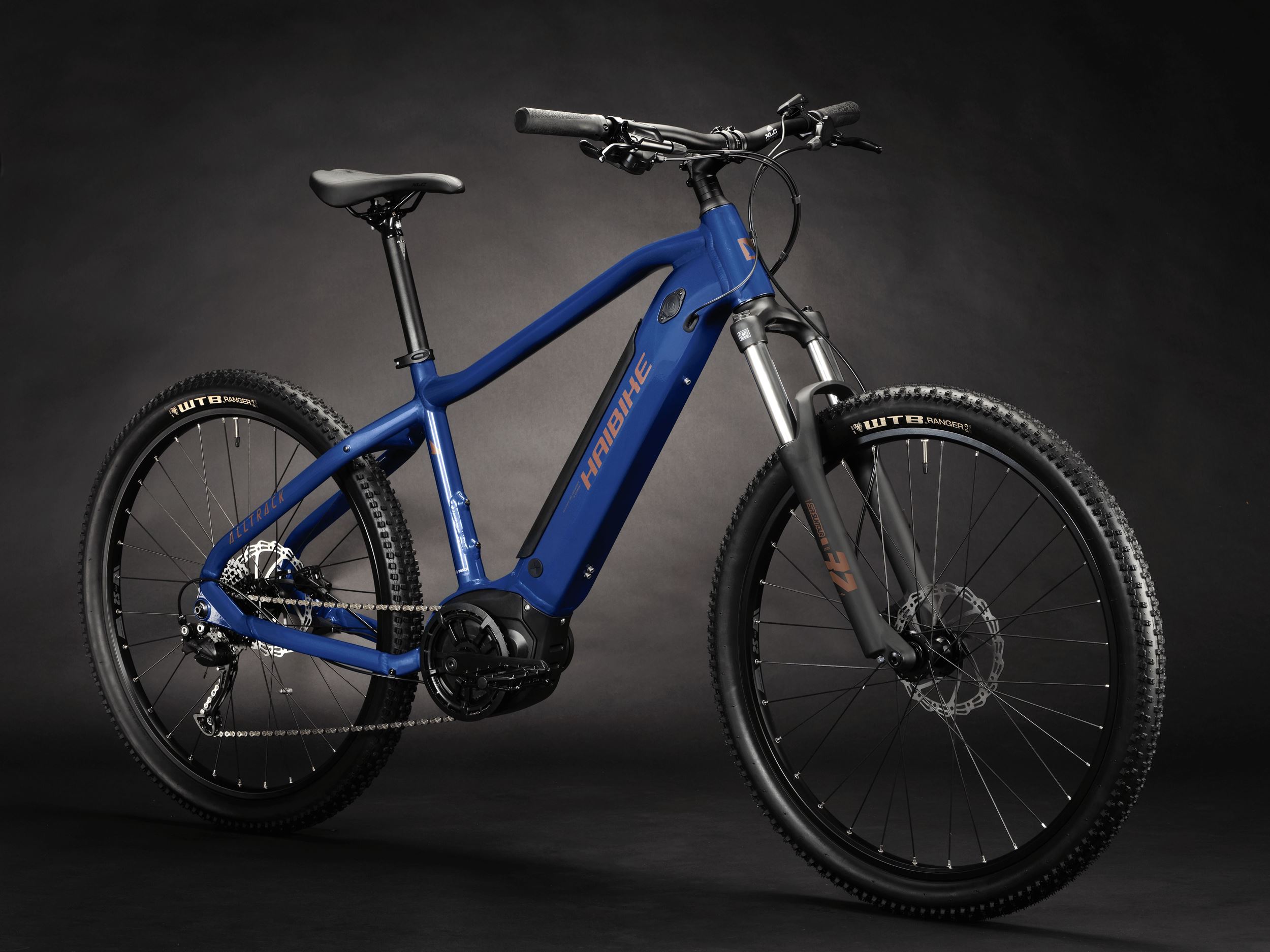

Haibike Alltrack 4

¿Buscas una eMTB hardtail básica con un potente motor? Nuestra nueva ALLTRACK 4 convence por su combinación de componentes sofisticados y un potente motor de la línea Performance de Bosch que te ofrece el apoyo adecuado en cualquier terreno. Los fiables componentes de cambio de Shimano y los fuertes frenos de disco garantizan el placer de una conducción segura en todas tus salidas. La ALLTRACK 4 está disponible en las tallas de cuadro S y M con ruedas de 27,5"

Bike Geometry

Bottom bracket drop [mm]: 54 mm
Chain stay length [mm]: 490 mm
Head tube angle: 65 degrees
Head tube length [mm]: 125 mm,135 mm
Reach [mm]: 405 mm,437 mm
Stack [mm]: 624 mm,633 mm
Seat tube angle: 75 degrees
Seat tube length [mm]: 400 mm,450 mm
Top tube length [mm]: 574 mm,610 mm
Wheelbase [mm]: 1217 mm,1253 mm

Brake system

Brake Rear Mount: Post Mount

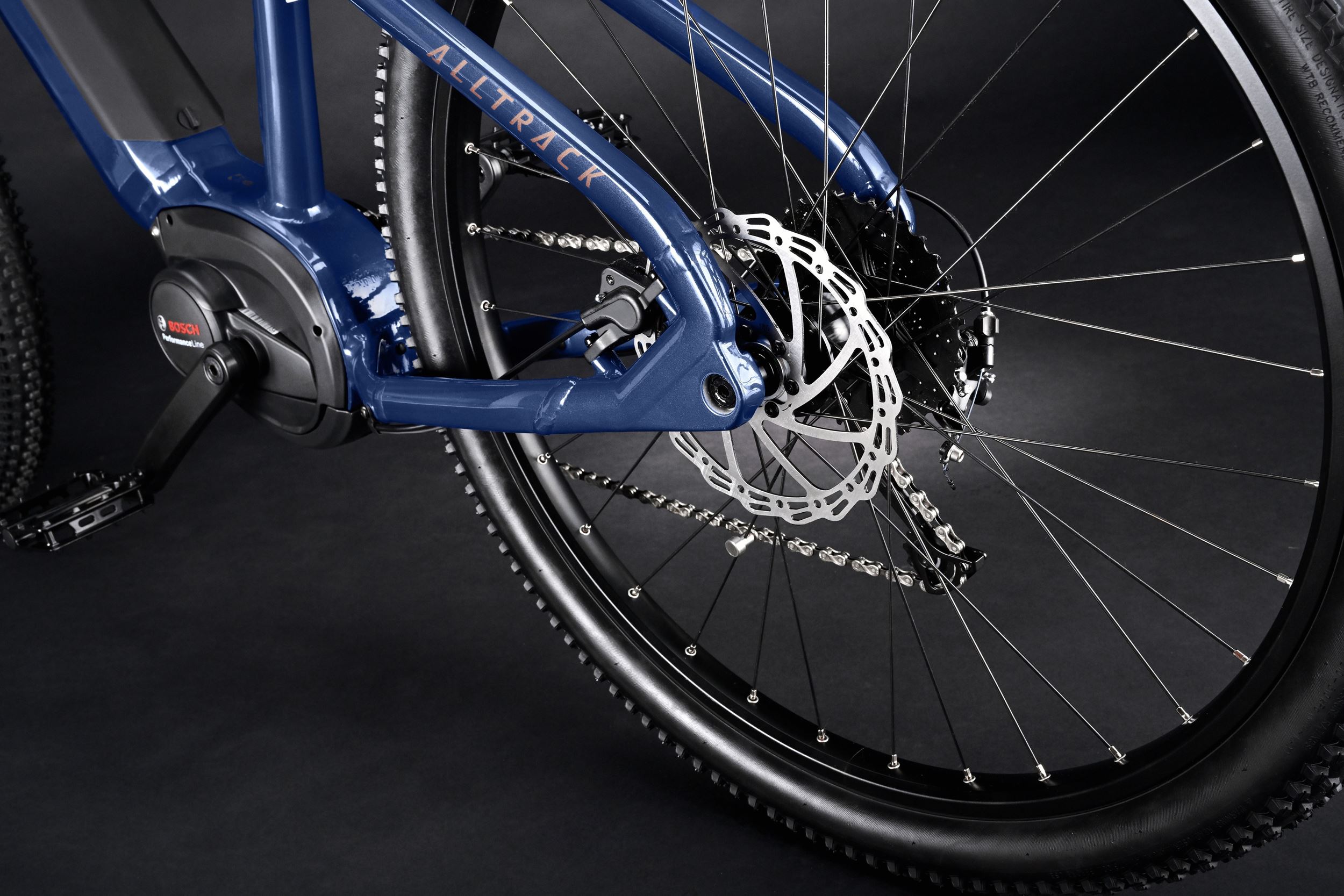

Brake Front Description: Alhonga, Freno de disco hidráulico, HT472, 180 mm
Brake Rear Description: Alhonga, Freno de disco hidráulico, HT472 180 mm
Brake Lever Description: Alhonga, HT472
Brake Rotor Description: Alhonga, DXR1806 180 mm

Drivetrain

Cassette Teeth: 11-36T
Crankset Teeth: 38T
Crankset Type: single
Number Of Gears: 9
Pedal Inclusive: Si
Bottom Bracket Description: integrated in the motor
Cassette Description: Shimano, Cues LG300-9, HG
Chain Description: Shimano, Cadena, CN-LG500
Chain Guide Description: Haibike, Nylon directmount

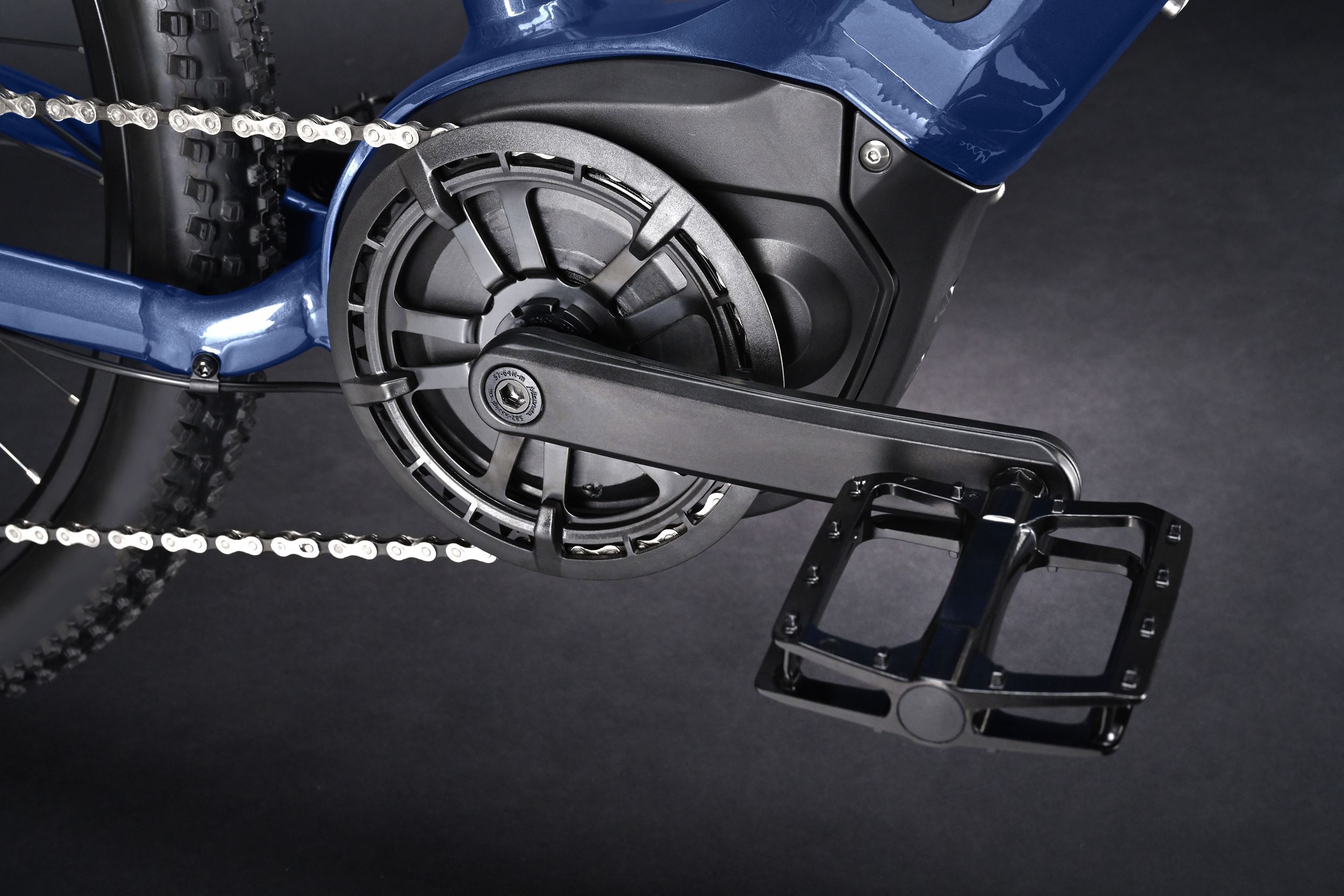

Crankset Description: Miranda, Virage 165 mm

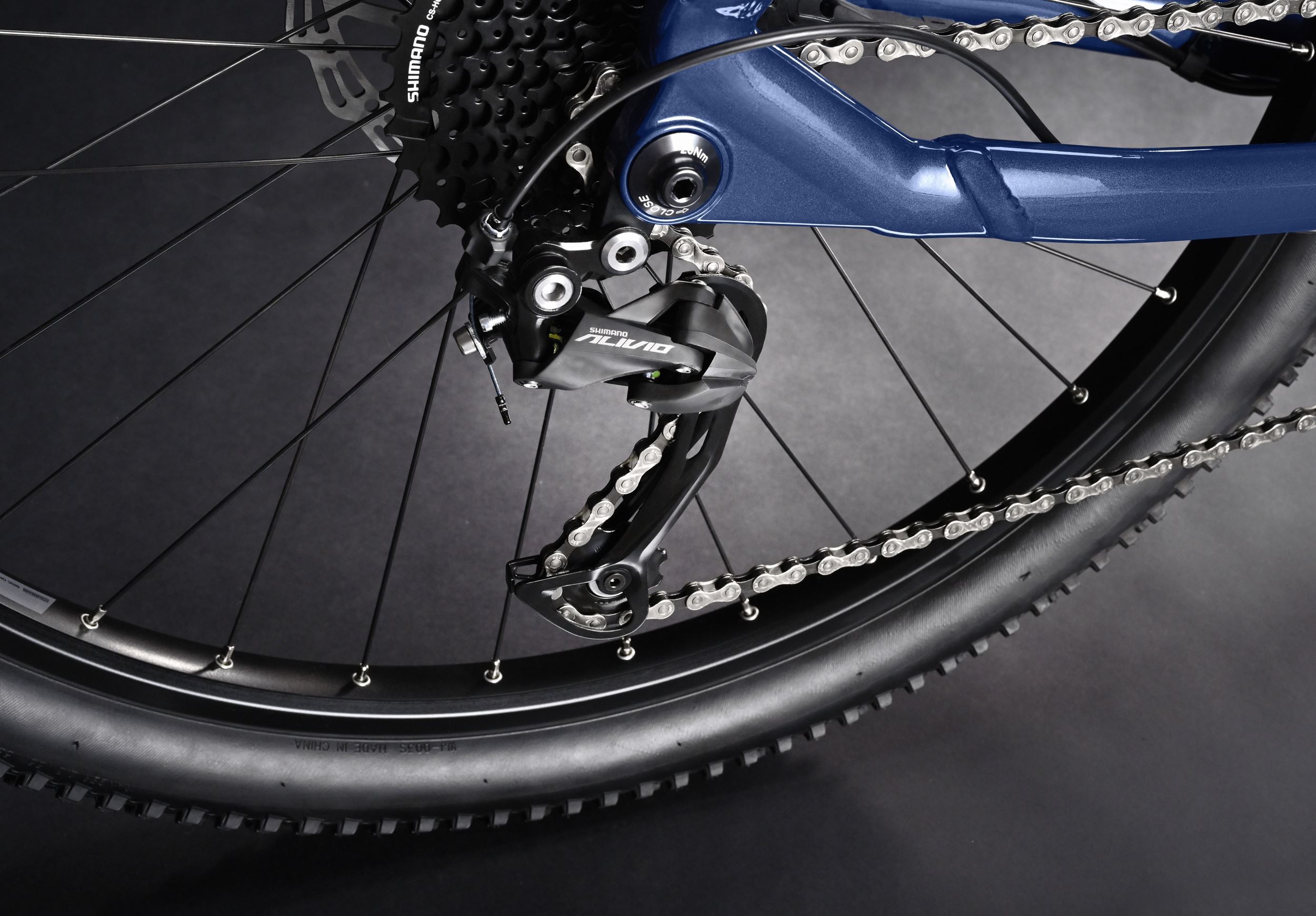

Derailleur Rear Description: Shimano, Cues U3020 9s
Gear Description: Shimano, Derailleur
Pedal Description: Haibike, Freeridepedal

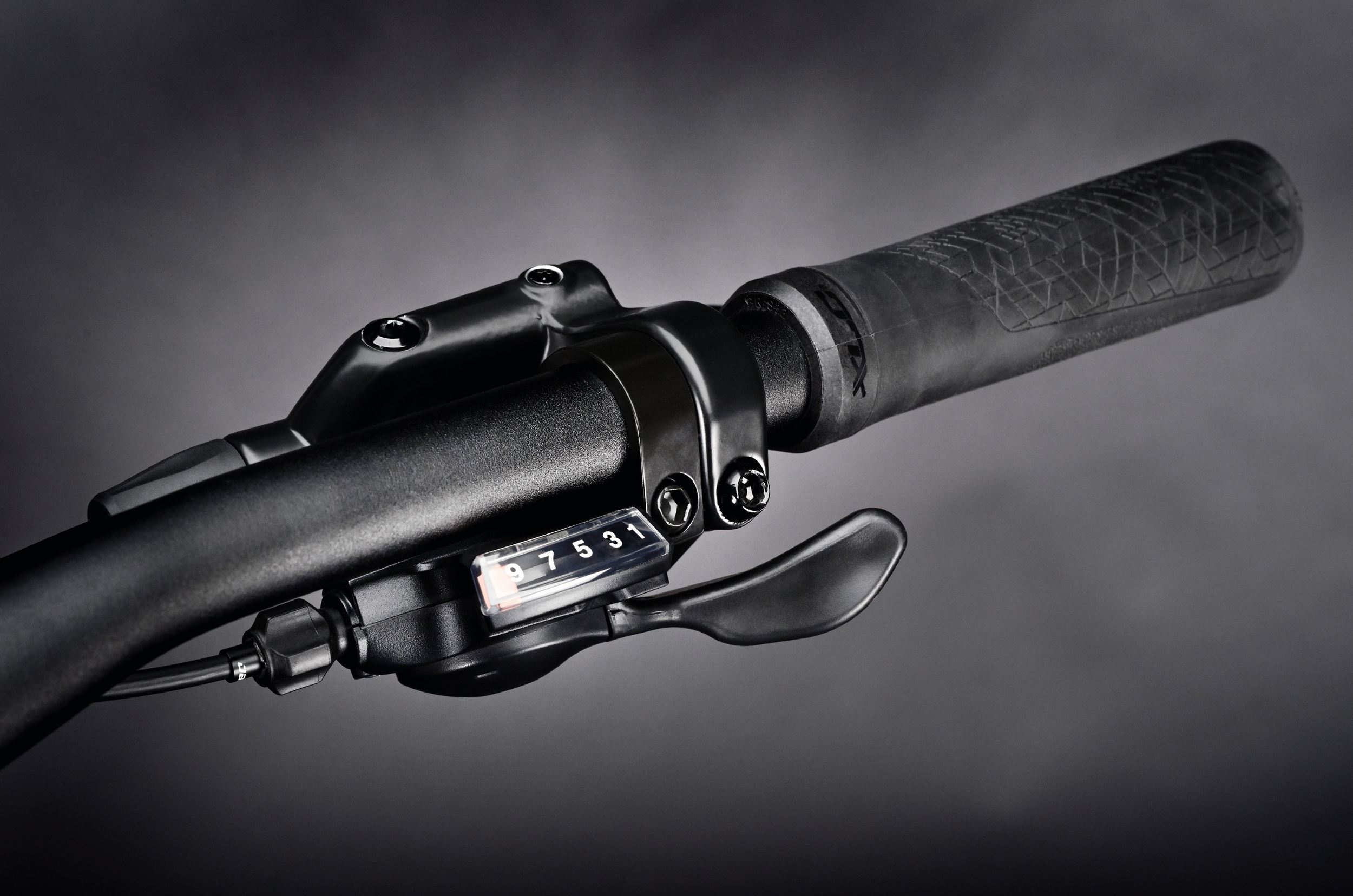

Shifter Right Description: Shimano, Triggershift, Cues U4000, Rapidfire

E-bike components

Battery Location: Downtube
Max Support Speed [km/h]: 25 km/h
Motor Torque [nm]: 75 Nm
Motor Location: Center
Battery Description: Bosch, PowerTube 500Wh
Charger Description: Bosch, Standard Charger 4Ah
Display Description: Bosch, LED remote

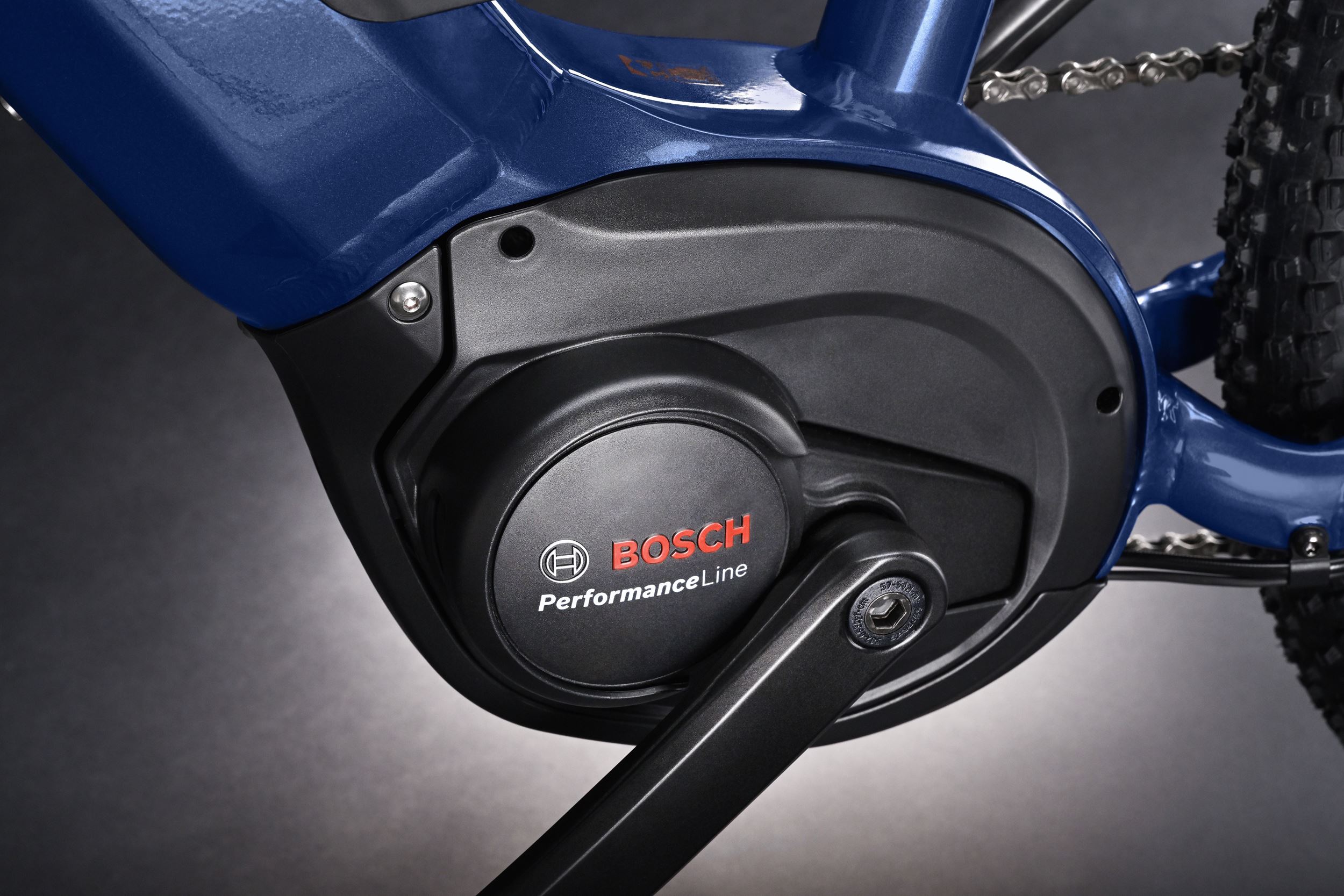

Motor Description: Bosch, Performance Line Smart System

Frame and more

Framesize Convection: S,M
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Lockout: No
Suspension Type: Hardtail
Travel Front: 120 mm
Front Fork Description: Suntour, XCM32 Boost DS 120 mm

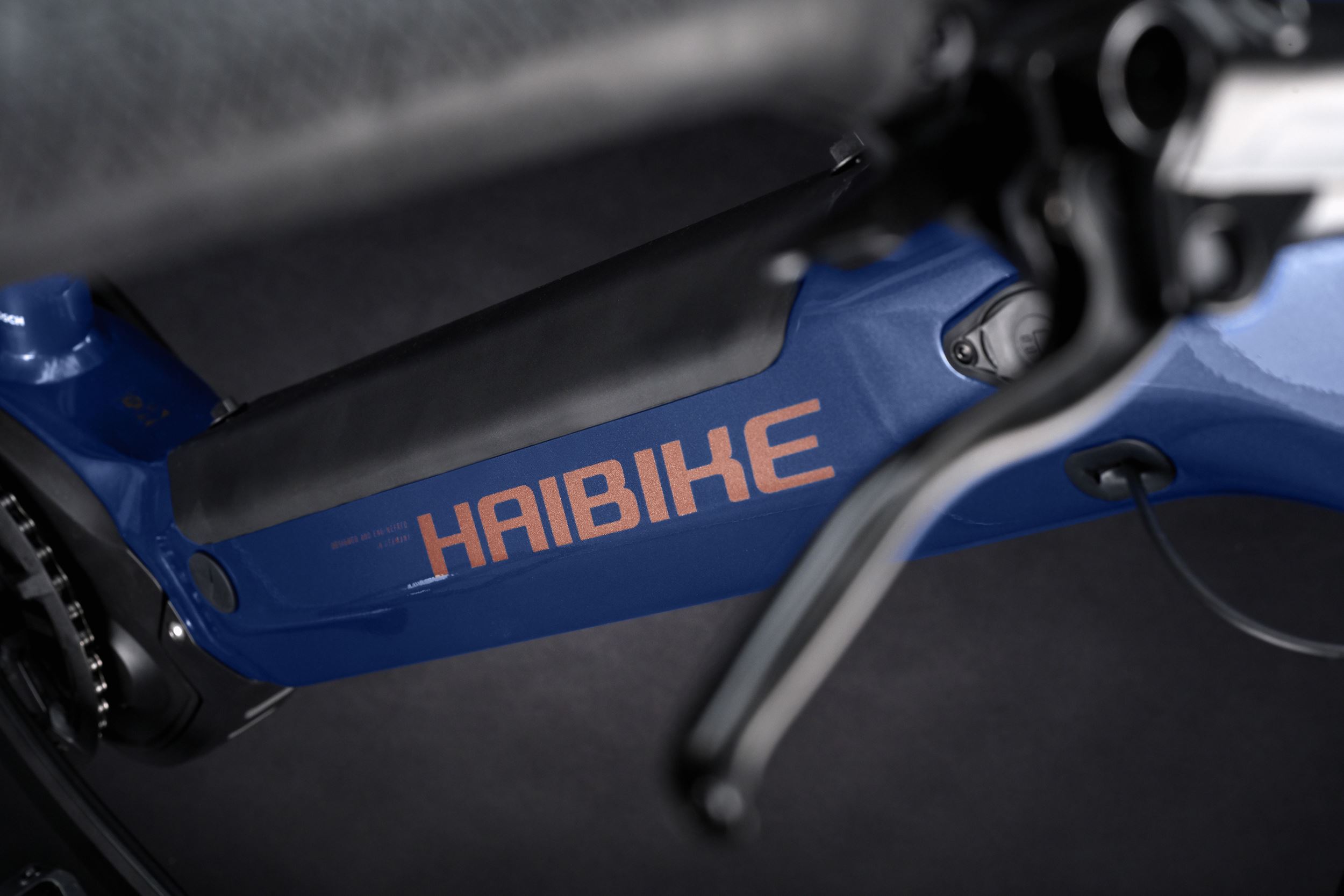

Frame Description: MTB Hardtail, Aluminio

Handlebar and Saddle

Handlebar Diameter: 0 mm
Handlebar Width: 720 mm
Seatpost Material: Aluminio
Stem Length: 45 mm
Handgrip Description: XLC, MTB grips
Handlebar Description: XLC, 720 mm
Headset Description: Feimin, A-Head Tapered FP-H868P 1 1/8"
Saddle Description: XLC, MTB
Seatpost Description: XLC, Non Suspension, patent, Dia. 31.6 mm
Stem Description: XLC, A-Head Dia. 31.8mm, L: 45 mm

Lighting

Brake Light: No

Wheels and wheel components

Hub Front Description: Haibike, Alunabe 15x110 mm
Hub Rear Description: Haibike, Alunabe 12x148 mm
Rim Description: Schürmann, Hollow rim, Yak25
Rim Rear Description: Schürmann, Yak25
Spoke Description: Sapim, Leader
Tyre Description: WTB, Ranger Comp, 55-584
Tyre Rear Description: WTB, Ranger Comp
Wheelsize Description: 27.5, 27.5

Talla

Precio anterior: 2.999 € IVA inc.

Precio: 2.249,9 € IVA inc.

Cantidad:

Especificaciones técnicas

Tipo motor	Bosch Performance Line Smart System
Capacidad batería	500 Wh
Tipo de cambio	9v.
Tipo frenos	180mm
Suspensión delantera	120mm
Ruedas	27,5"

Si quieres puedes financiar tu compra, calcula tus cuotas
